'Generation Series' 5 Axle HMPV Curtain Side Trailer
OUR 5 AXLE HMPV curtain Side trailer has proven itself worthy to join the Domett ‘GENERATION SERIES’
The Domett 5 Axle HMPV Curtain Side Trailer is purpose-built using leading-edge manufacturing techniques ensuring you get a lightweight trailer
that will provide optimal performance and handling trip after trip.
No matter what you are carting our Curtain Side units are purpose built to the individual and unique requirements our customer needs to operate in today’s freight environment. See below to find out more about our ‘Generation Series’ 5 Axle HMPV Curtain Side Trailer or to enquire about booking a time to start building a plan for your new trailer unit.
“To put it simply the Generation Series truck and trailers have been handpicked to include a premium range of features, but at a highly competitive price!”
UNIQUE FEATURES OF OUR
‘GENERATION SERIES’
5 AXLE HMPV CURTAIN SIDE TRAILER
DIMENSIONS / SPECIFICATIONS
- Length – 11.5m
- 22 pallet capacity with HPMV permit
- 1,090mm low deck height
- Gross Vehicle Mass (GVM) – 32,000kg
- Estimated Tare Weight – 6,850kg (excl. Mezz floor)
ENJOY GREATER STRENGTH AND LIGHTER TARE WEIGHT
- Main beams fabricated from medium to high tensile steel
- Beam sections are high definition CNC plasma cut to protect cross member connections
- Standard A frame drawbar with cast hinges, tapered bushes, 2 x drawbar springs and 50mm toweye
PERFORMANCE AND STYLE
- SAF Intradisc disc braked axles with integrated air suspension and rear lift axle
- Wabco EBS braking system (12-24 volt) to NZ heavy vehicle brake code (includes certification)
- Grease filled wheel hubs including hubometer
- 19.5” Alcoa alloy rims with Dura-Bright outers
- Firestone FS411 tyres (no spare or carrier included)
- Chrome nut covers and hub caps
SINGLE SKIN CLEAR COATED CURTAINS
- Certified single skin non-insulated curtain including clearcoat
- Stainless steel buckles on low stretch straps every 600mm
- Flush-mounted tie backs in rear wall
- Quirk tensioners mounted for easy access at both ends of each unit
- Variety of curtain signage options available (customer to organise)
22 PALLET CAPACITY BODY WITH
HPMV PERMIT
- Slimline Holypan front walls over steel framing and bottom kick panel
- Steel rear wall frame with one piece Holypan
- Lightweight roof frame with one-piece alloy roof sheet
- 3 x sliding roof supports with locators
- Hi-vis tape fitted to rear wall
- Optional mezzanine floor upgrade available
NZ COMPLIANT ELECTRICAL AND LIGHTING
- 6 x Hella LED stop/tail/indicator lights mounted to a stainless-steel easy clean hinged light box
- 6 x matching top lights with stainless backing panel
- 9 x Hella LED clearance lights and curtain track lights per side
- 1 x side indicator per side
- 2 x Hella LED reversing lights
- 1 x interior deck light
- 1 x night light
- 13 pin male electrical coupling
WORLD-CLASS FITTINGS AND FINISHING
- Trailer chassis is media blasted, primed and then top coated using a heavy-duty electrostatic polyurethane coating to provide market-leading performance
- Resene paint products covered by a full paint performance warranty from Resene
- Alloy half guards with white mudflaps on the front
- Alloy guards rear with white mudflaps full width on rear axle set
- BPW 90-14 double row ball race
- 2 x alloy toolboxes with polished stainless steel doors
- East-West dunnage box with 9 bearers
- Ferry tie-down points
- Includes VIN, COF & Registration and plastic holders for licence/registration/RUC and HPMV attribute
- Easy to use Wabco smartboard with multi-functional monitoring capability
MARKET LEADING AFTER SALES SUPPORT
- 2 years or 300,000km warranty
- Free 3000km service check at our factory or at an authorised service agent.
- Access to our online trailer login for unit specifications, service manuals and certifications
- Ongoing part and service available
- Comprehensive operator’s manual provided on trailer handover

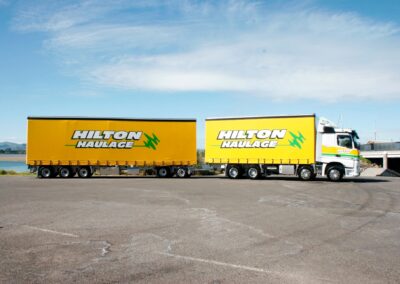

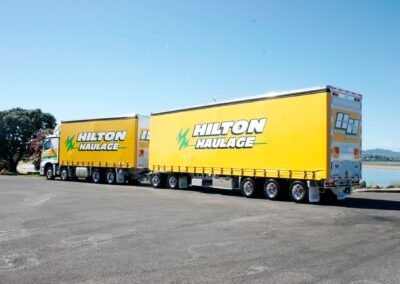

DISCLAIMER: Sample photos only. All specifications refer to the trailer units only
